Glock MOS- Holosun 509T

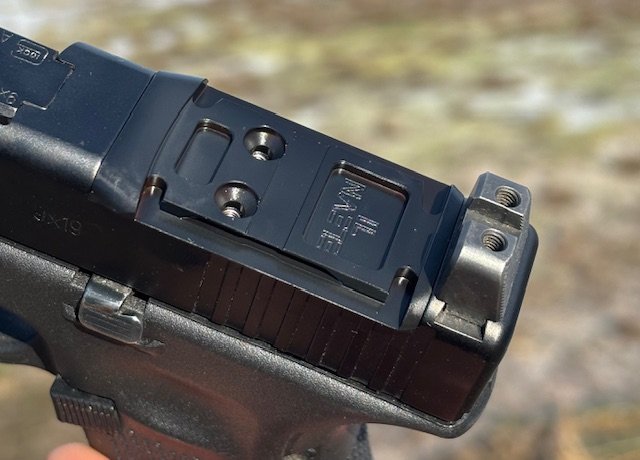

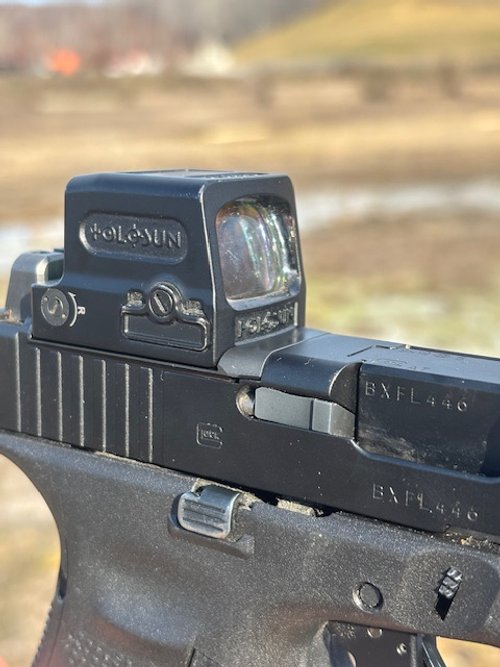

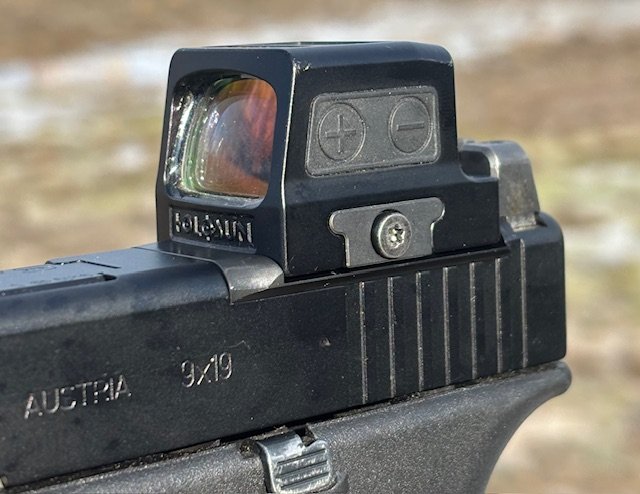

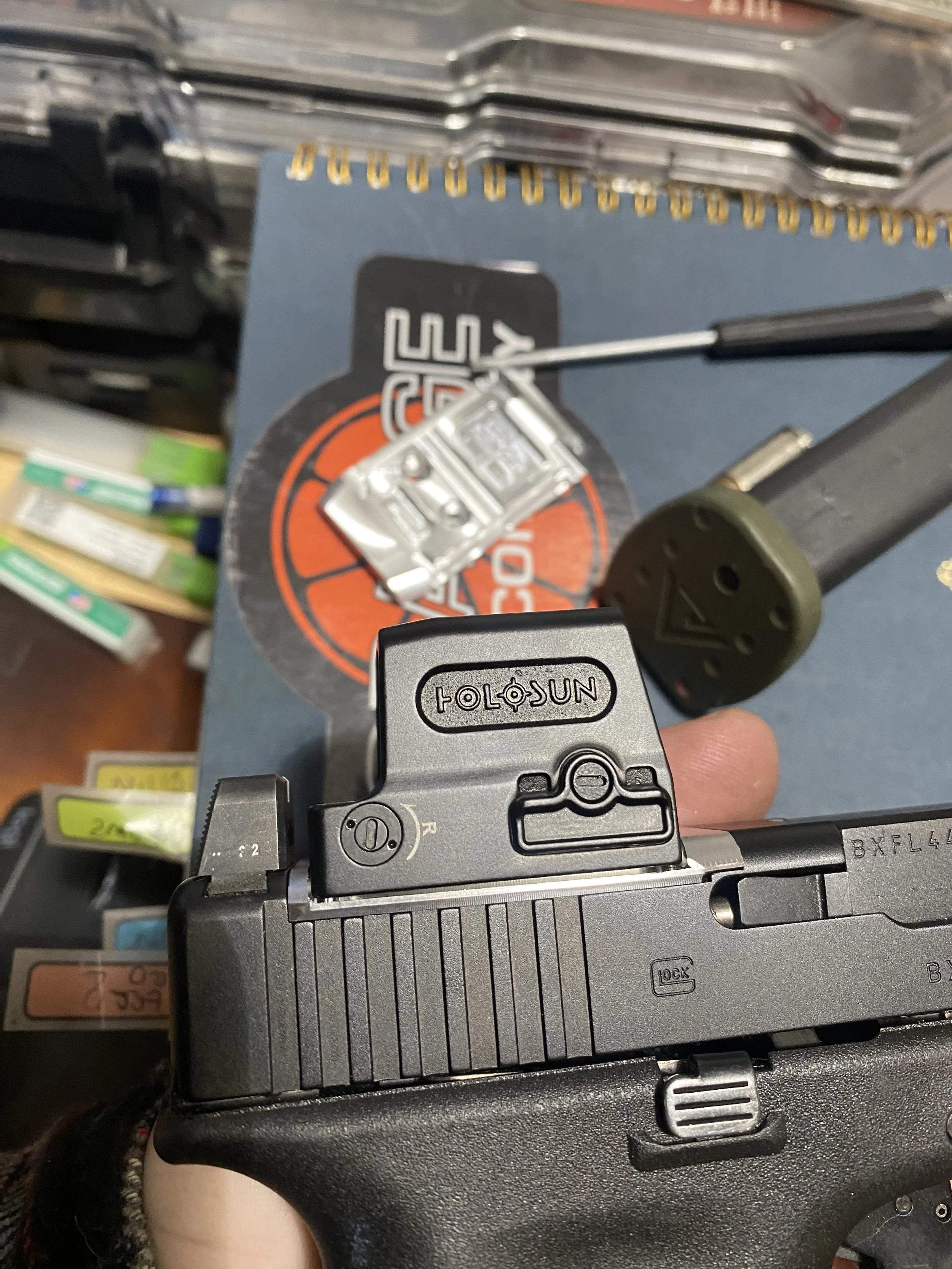

This Red Dot sight mount will seamlessly blend your Holosun 509T to your Glock. Made from 6Al-4V titanium this is the strongest and most durable Pistol optic mount for your 509T. Material was left as thick as possible in critical areas and reduced in non-critical areas to prevent unneeded weight being added to your slide.
The G45 has a slightly different optic cut that causes interference with the extractor spring when using the longer (8mm) screws I include with the normal package. If using my plates on a G45, please use the shorter (6mm) screws on the extractor side screw hole.
Iron Sights: This plate requires a rear sight height of at least .325” and will be extremely low in the window. I highly suggest a rear sight around .395”-.415”. The 10-8 performance optic height or the Heinie #3187L and #3187RL are what I use but many other companies make sights in this height.
This Red Dot sight mount will seamlessly blend your Holosun 509T to your Glock. Made from 6Al-4V titanium this is the strongest and most durable Pistol optic mount for your 509T. Material was left as thick as possible in critical areas and reduced in non-critical areas to prevent unneeded weight being added to your slide.
The G45 has a slightly different optic cut that causes interference with the extractor spring when using the longer (8mm) screws I include with the normal package. If using my plates on a G45, please use the shorter (6mm) screws on the extractor side screw hole.
Iron Sights: This plate requires a rear sight height of at least .325” and will be extremely low in the window. I highly suggest a rear sight around .395”-.415”. The 10-8 performance optic height or the Heinie #3187L and #3187RL are what I use but many other companies make sights in this height.
This Red Dot sight mount will seamlessly blend your Holosun 509T to your Glock. Made from 6Al-4V titanium this is the strongest and most durable Pistol optic mount for your 509T. Material was left as thick as possible in critical areas and reduced in non-critical areas to prevent unneeded weight being added to your slide.
The G45 has a slightly different optic cut that causes interference with the extractor spring when using the longer (8mm) screws I include with the normal package. If using my plates on a G45, please use the shorter (6mm) screws on the extractor side screw hole.
Iron Sights: This plate requires a rear sight height of at least .325” and will be extremely low in the window. I highly suggest a rear sight around .395”-.415”. The 10-8 performance optic height or the Heinie #3187L and #3187RL are what I use but many other companies make sights in this height.
Screw torque specs: I recommend the M3x.5 screws (plate to slide) be torqued between 12-15 inch/lbs. The optic screw should be between 15-20 inch/lbs. It is best to walk the screws up to spec. Start lower and slowly increase each screw to the torque spec.
